XB6-C01SP serial communication module implements free port communication example

Free port communication protocol refers to a communication method without standard specifications. The two parties can make free agreements or not make any agreements. They can simply receive/send data. The most common free port communication example in industrial sites is the reading of barcode scanner data.

XB6 series serial communication module XB6-C01SP of Solidot Technology supports free port communication mode, provides RS232/RS485/RS422 three-in-one interface, supports Modbus RTU/Ascii master station, supports transparent transmission and Freeport, supports customization of each master station function block, and can meet the needs of most industrial sites.

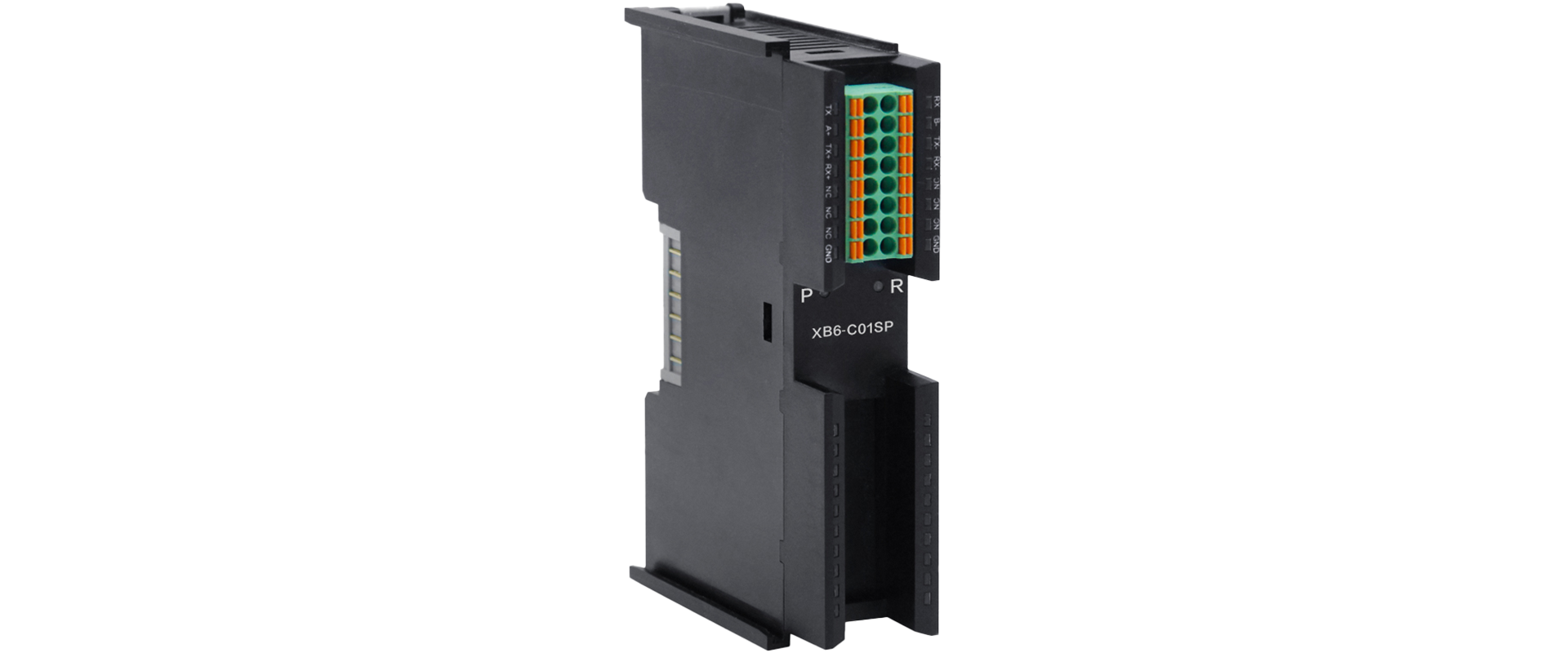

↑ XB6 series serial communication module XB6-C01SP

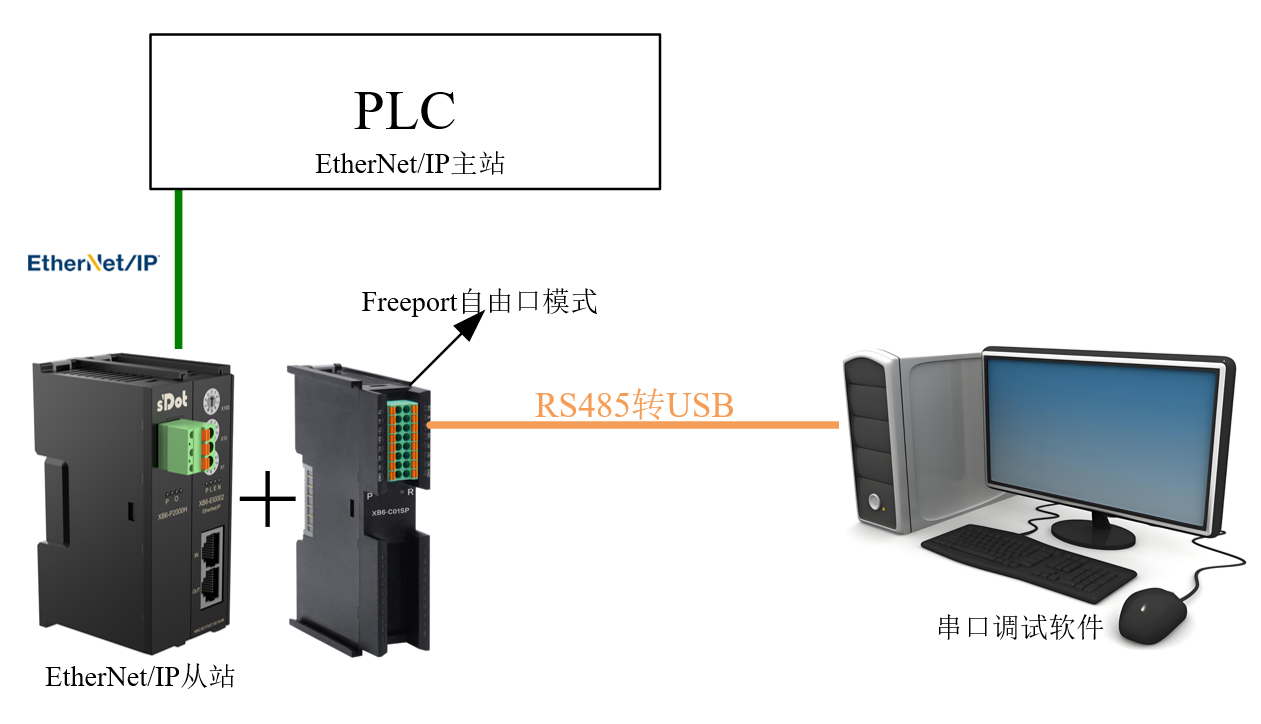

1. System topology diagram

This example uses the XB6 series EtherNet/IP coupler XB6-EI2002ST and XB6 series serial communication module XB6-C01SP of Solidot Technology to realize free port data interaction through RS485 wiring and serial port tools.

2. Serial port module configuration parameters

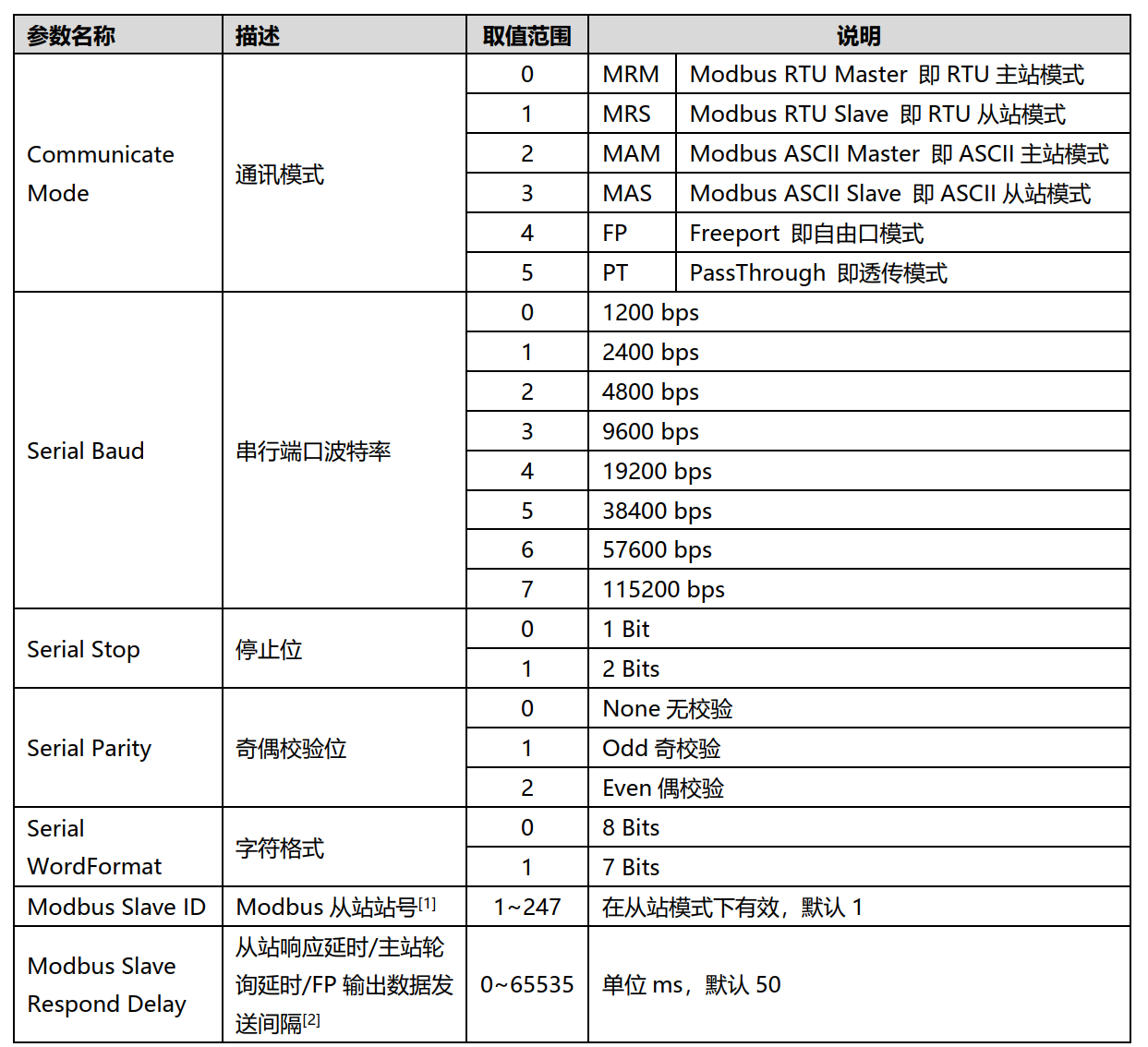

1、Introduction of XB6-C01SP parameters

2、Configure the serial port module parameters, which must be consistent with the serial port tool end

3. Freeport Data Interaction Example

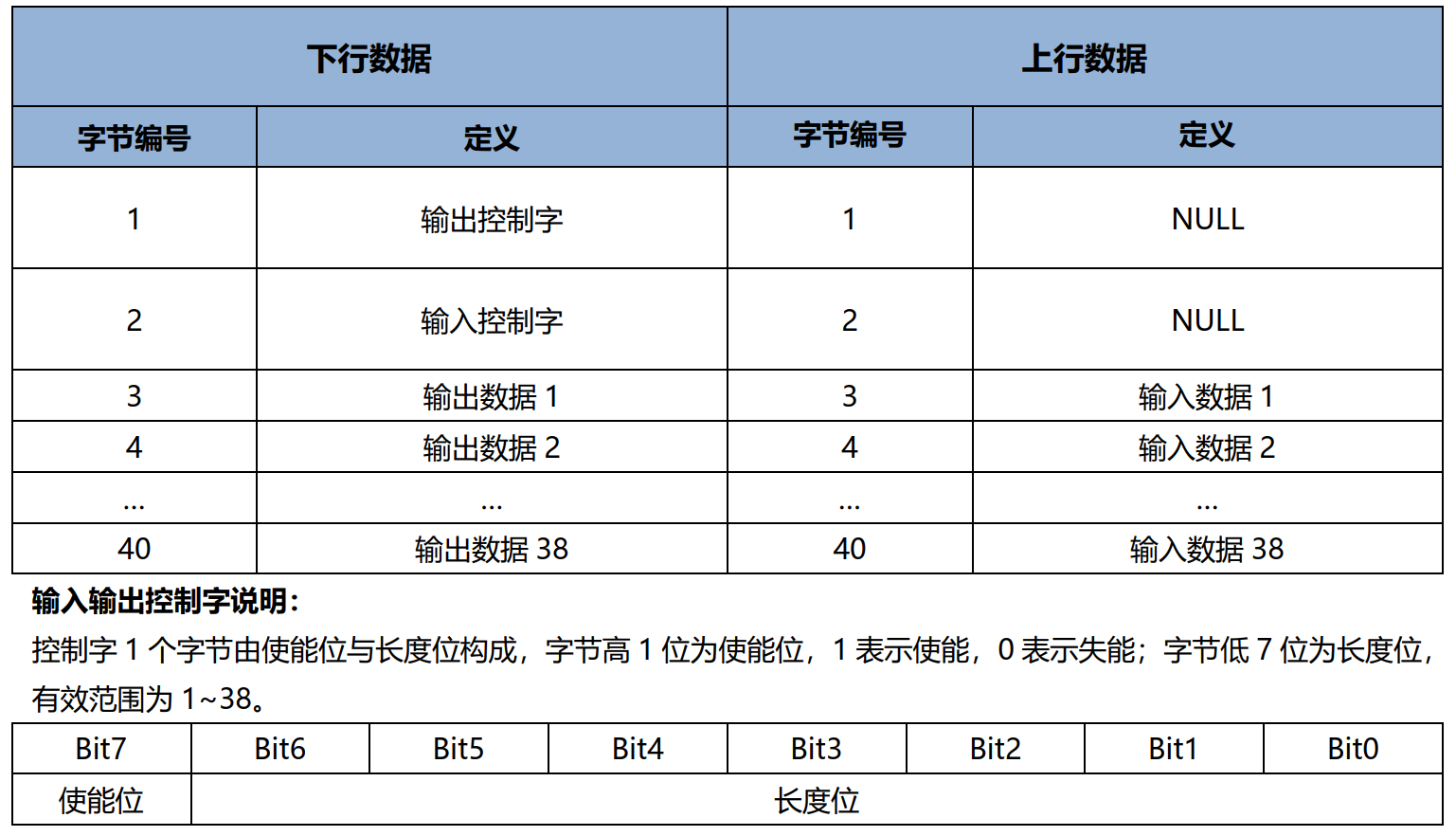

1. Introduction to XB6-C01SP free port process data

2. Demonstration: Use Freeport to send 10 bytes and receive 15 bytes

2.1 Configuration parameters

Communicate Mode: Select Freeport;

Modbus Slave Respond Delay: Select 200ms, which indicates the sending interval of output data, in ms;

2.2 Configuration control word

Sending means output, enable the output control word, the length is 10 bytes, i.e. 10001010 (Bin) = 0x8A (Hex);

Receiving means input, enable the input control word, the length is 15 bytes, i.e. 10001111 (Bin) = 0x8F (Hex);

2.3 Start sending/receiving data

Part of the above information comes from the user manual of the XB6 series serial communication module XB6-C01SP of Solidot Technology. If you need to know more, you can log in to out official website and search XB6-C01SP to download the complete information.
