SW4-ECP04 is a vertical EtherCAT splitter with four EtherCAT network ports (RJ45 interfaces), which is compatible with EtherCAT networks of multiple manufacturers and supports cascading functions. It can be used for EtherCAT port expansion and topology optimization of complex field environments to meet the connection requirements of various types of EtherCAT devices.

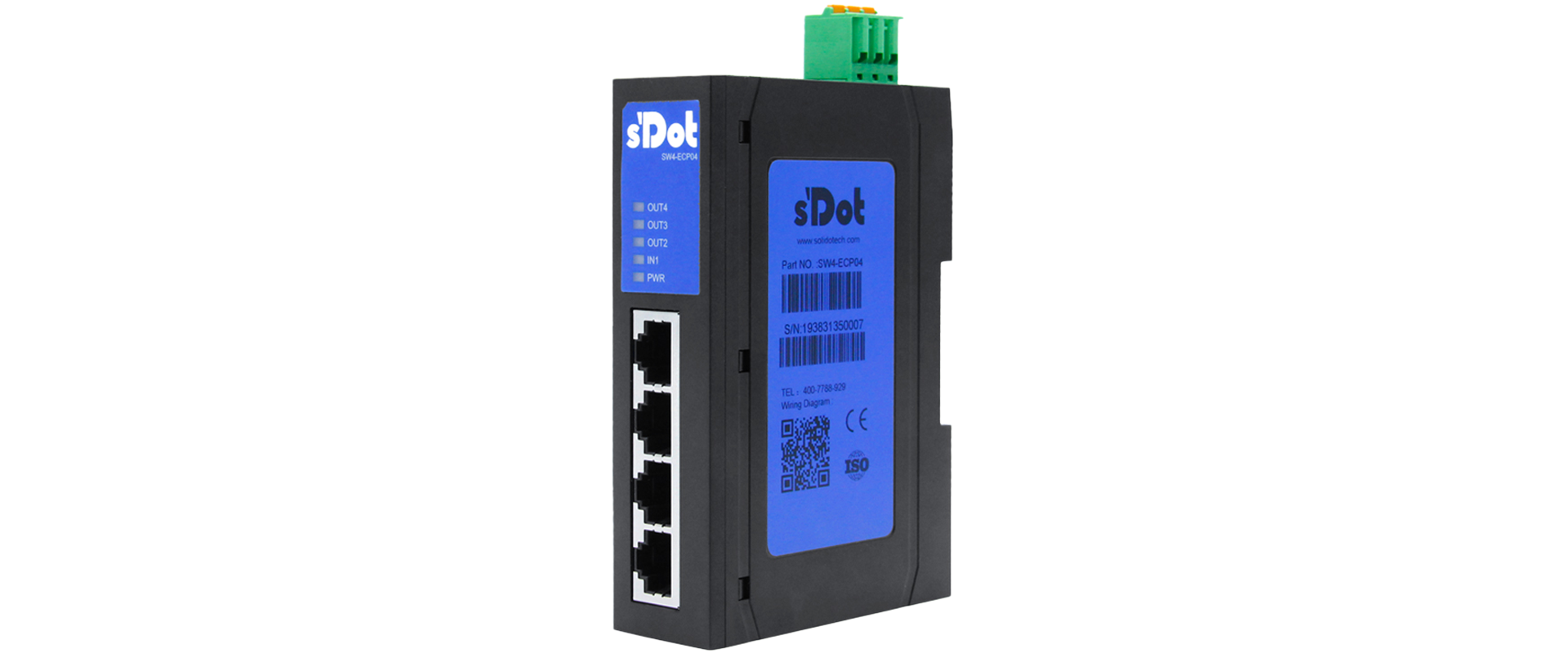

↑ Solidot Technology Vertical EtherCAT Four-Port Junction SW4-ECP04

1. SW4-ECP04 product structure

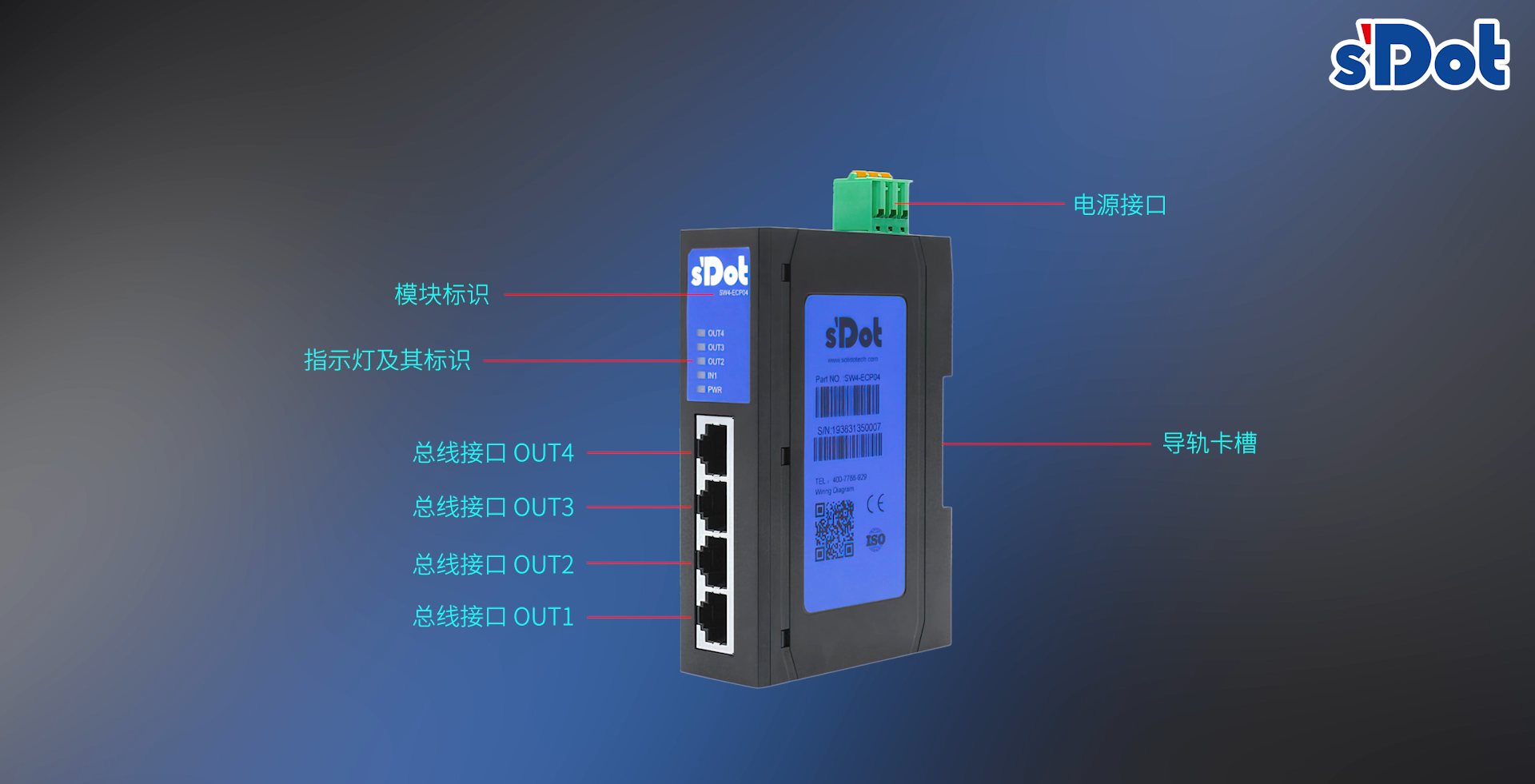

SW4-ECP04 consists of a power interface, module identification, indicator lights and their identification, guide rail slots, and 4 bus interfaces.

2. SW4-ECP04 Product Features

1. Small size, suitable for applications in small spaces;

2. Based on high-performance EtherCAT ASIC communication chip, faster speed;

3. Simple configuration, supports major mainstream EtherCAT master stations;

4. 10M/100M rate adaptation to avoid freezes and delays;

5. Support DC clock function;

6. DIN 35 mm standard rail installation;

7. Support network cable hot plugging.

↑ For more complete product introduction, please click on the video above to watch

3. SW4-ECP04 Product Advantages

The EtherCAT bus topology usually consists of a master station and multiple slave stations. It uses a distributed data transmission method. Devices are generally connected in sequence through a physical link in a linear topology. This topology and wiring method often requires a large number of network cables, which not only increases the difficulty and cost of wiring, but also easily causes failures and maintenance difficulties.

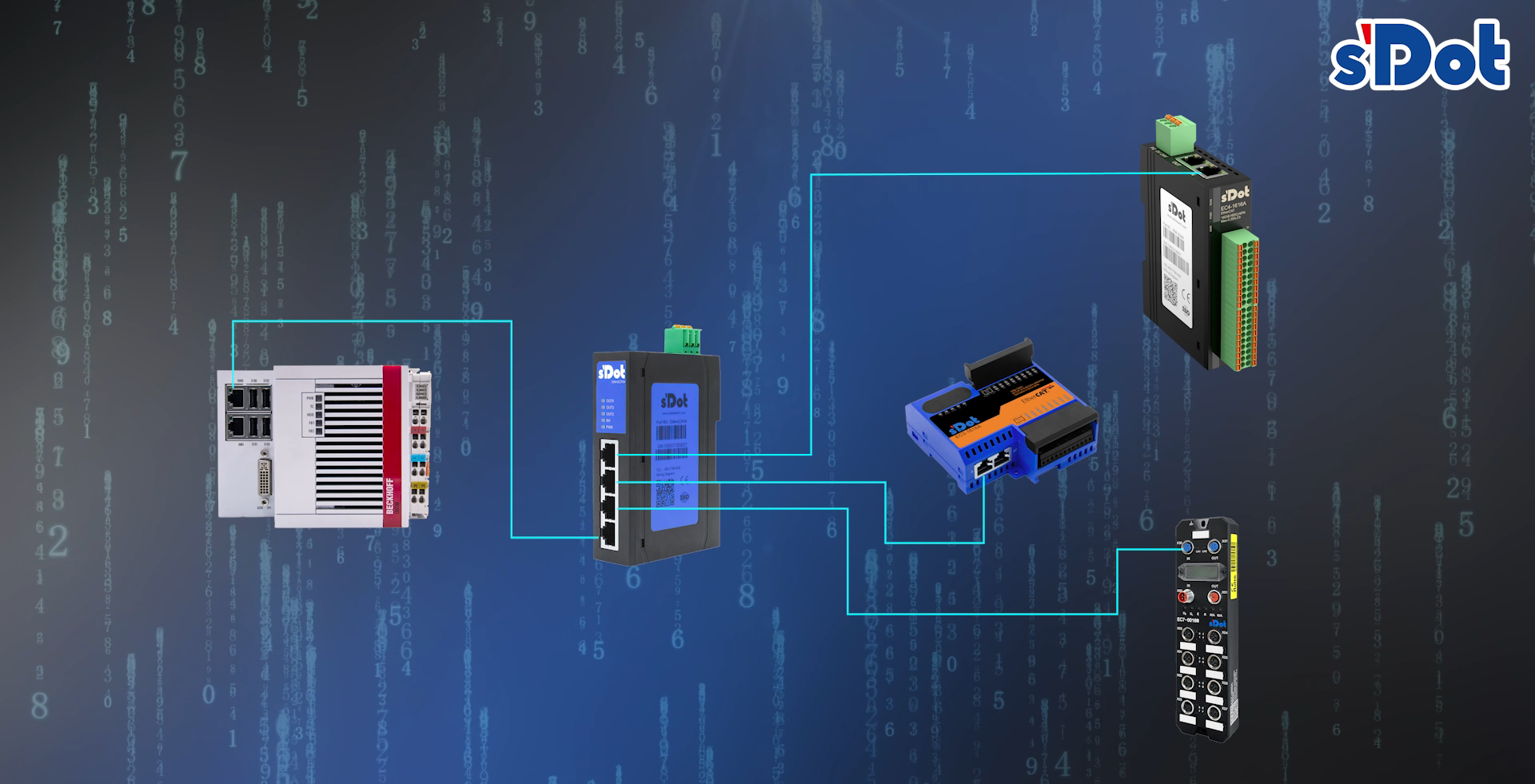

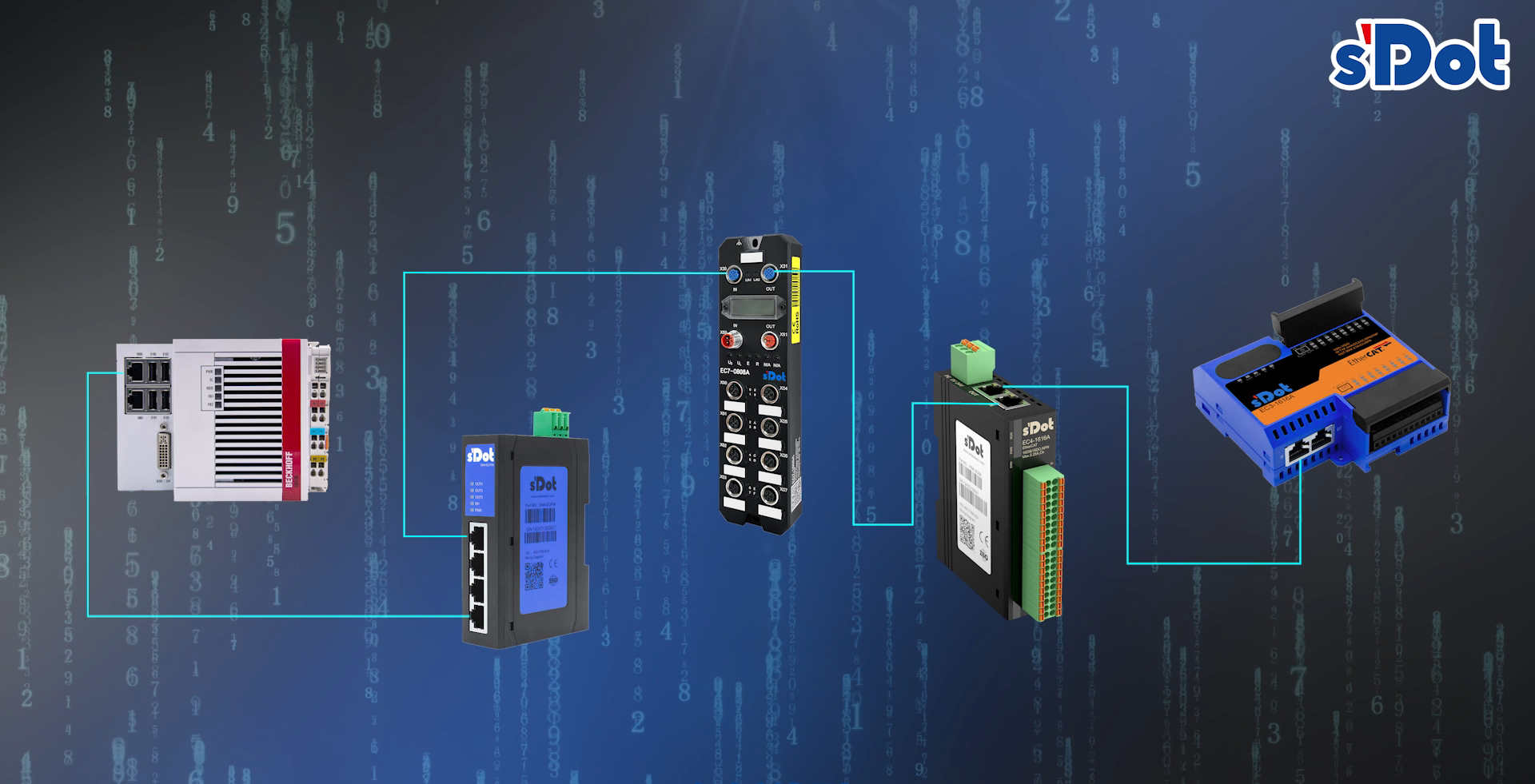

↑ Unoptimized EtherCAT bus topology

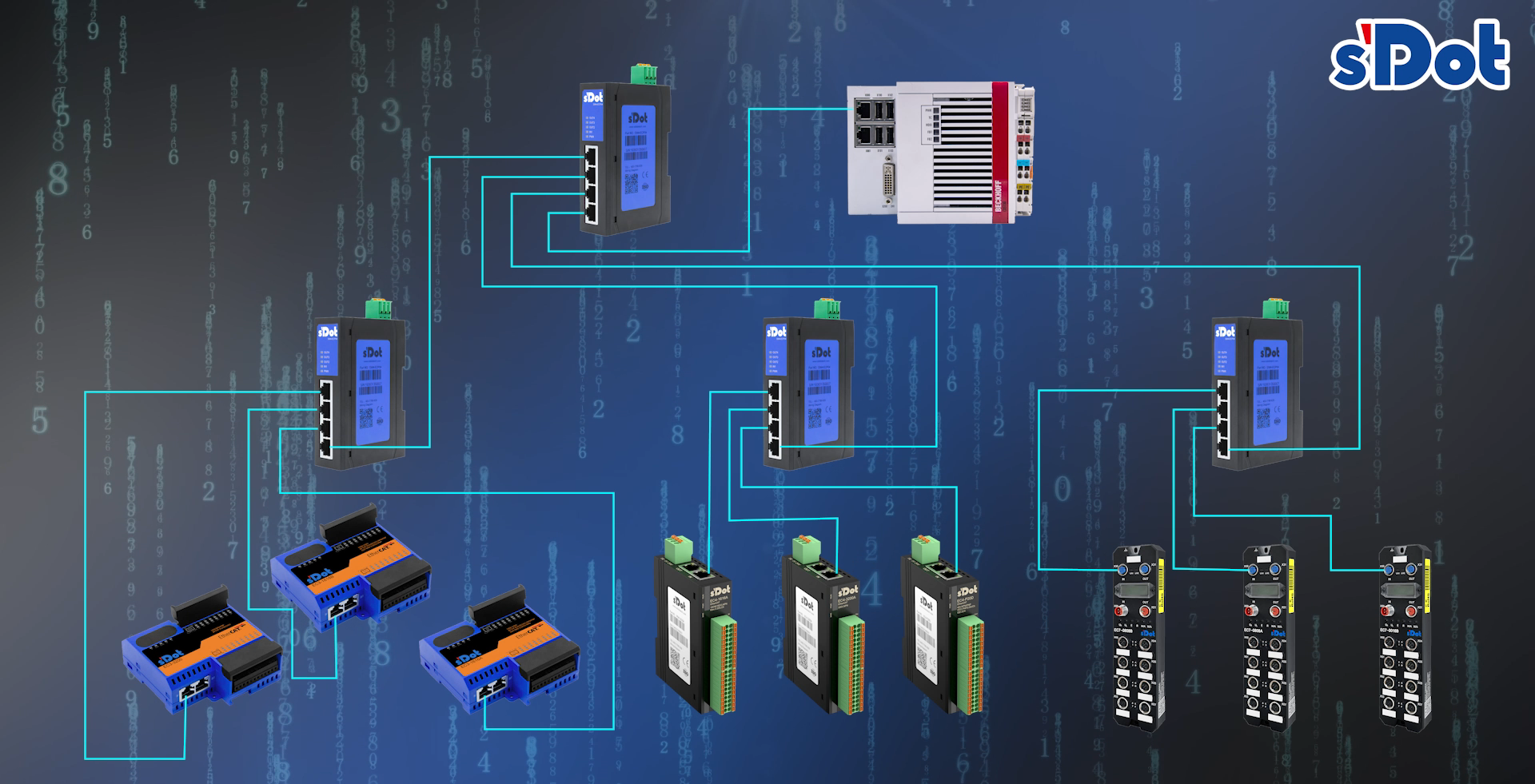

The EtherCAT four-port splitter SW4-ECP04 from Solidot Technology supports a variety of topologies, including linear, tree, star, etc. It can be flexibly configured according to actual application scenarios and is a "powerful assistant" to adapt to various complex industrial automation environments.
